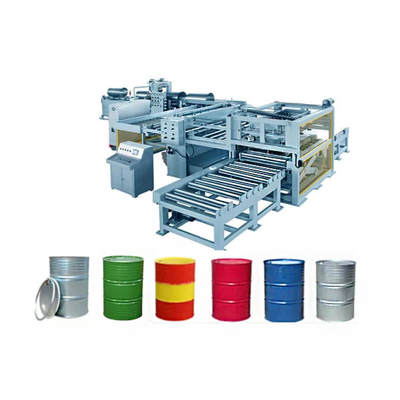

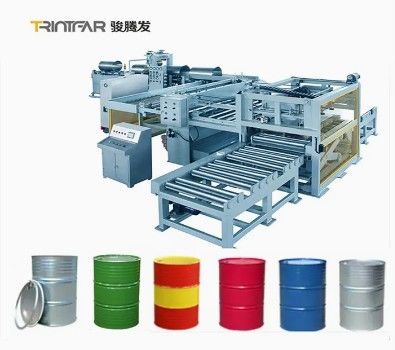

Automated steel drum seam welding machine production line

Büyük resim : Automated steel drum seam welding machine production line

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Trintfar
Sertifika:	CE

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	10000~80000
Ambalaj bilgileri:	Ahşap braketler/ahşap kılıflar
Teslim süresi:	90 ~ 120
Ödeme koşulları:	L/C, D/A, D/P, T/T

İletişim

Automated steel drum seam welding machine production line

Açıklama

Uygulama:	Çelik davul dikiş kaynağı	Güç (W):	Ayarlanabilir
Kaynak hızı:	16m/dakika	Malzeme kalınlığı aralığı:	0.8-1.5mm
Hava basıncının sıkıştırılması:	0.6mpa	Davul uzunluğu aralığı:	470-1100mm

Product Description

Automated steel drum seam welding machine production line 0

Product Description
Automated steel drum seam welding machine production line 1

Automated steel drum seam welding machine production line 2

Technical Solution.
1. 7 layers of circle rolling technology" (core tech of our company) has been adopted in Middle Equipment.
2. High-pressure painting without air, fuel heating has been adopted in Post Production Equipment.
Automatic production line, 11 workers are required only.
3. Complex Pressing technics have been adopted in Front Equipment, which saves 3~4% steel materials for each 55 Gallon steel drum.
Automated steel drum seam welding machine production line 3

Automated steel drum seam welding machine production line 3

A. Cut the steel plate size: width 600-1320mm; thickness 0.6-1.4mm; B. Production capacity: cutting 15 time/minute; Max. Cutting speed 50-60m/minute; C. Total weight of the equipment: about 55 ton; D. Total power of the equipment: 48KW; E. Production level: cutting precision Length: tolerance 0.5mm; diagonal: tolerance 1mm
a. Coil cart: driven by 3 in 1 motor, hydraulic up and down;
b. Uncoil unite: no power turning, hydraulic driving, coil inner diameter Ф508-Ф610mm; Maximum load-bearing 15 tons;
c. 7 roller leveler machine: 7 rollers leveling, motor speed adjustable by change frequency;
d. Measurement facility: the length and precision is controlled by A.C. service motor made in Japan;
e. Transporter: rollers conveyer.
f. Cover Pressing Machine (160Ton press) : to forming the cover and bottom by 2-160 Ton punch press, the raw material is coiling steel plate, loading and unloading is Auto operating. Unit power is 15KW.
g. Double Locking Pressing Machine: to locking the small cover by 63Ton punch press.
h. Pre curling & spray sealing glue machine: Before seaming, the drum top and bottom need pre-curl, at same time must spray glue to ensure the seaming quality.
i. Cutter: 3×2000mm ;PLC control. producing PET plastic containers and bottles in all shapes.
Automated steel drum seam welding machine production line 5

Automated steel drum seam welding machine production line 5

Support various color LOGO customization fast production efficiency and automated support make production very simple

item	value
Condition	New
Machine Type	Welding Manipulator
Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location	Egypt, Turkey, United Kingdom, United States, France, Germany, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Australia
Core Components	PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear
Speed	2~10pcs/min

Automated steel drum seam welding machine production line 6

Automated steel drum seam welding machine production line 7

Automated steel drum seam welding machine production line 8

Automated steel drum seam welding machine production line 9

Automated steel drum seam welding machine production line 10

Automated steel drum seam welding machine production line 11

Q Are you a trading company or a factory?
A We are an integrated industry and trade, and have our own factory.

Q Where is your factory located?
A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

Q Can you customize the machine?
A We support OEM/ODM service and can customize the machine according to your requirements.

Q What is the MOQ?
A According to the customer's requirements.

Q What are your services during the purchase process?
A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
On-sales: Technical training, Installation and commissioning services.
After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.

Q How long is your warranty period?
A We offer a one-year warranty.

Q What is the payment terms?
A We ship with full payment, and we can negotiate payment terms.

Q How long is the delivery time?
A Delivery time for standard machines: 7-15 working days
Delivery time for customized machines: According to the degree of customization, about 1-3 months

Q Can you provide samples?
A We provide sampling service, but you need to send us the sample by courier.
